Creating simple Web UI

The UI was created using React JS and a Node JS proxy to the API. Here is a highlight of key files:

• workshop/frontend
• Dockerfile - Dockerfile for building and deploying web app
• .env - local file used to provide configuration values (e.g. url)
• package.json - required package dependencies
• server.js - NodeJS application code
• src - React JS application source code directory
  • App.tsx - main application code
  • index.tsx - application entry point

Running Web UI locally

Build Web UI

1. Go to the frontend directory

cd workshop/frontend

1. Run npm install to get required dependencies

2. Run npm run build to build the React application

Run Web UI

1. Create .env file in frontend directory and provide the following required values:

   1. PORT - port where React app is running
   2. REACT_APP_PROXY_URL - url to the Node JS proxy

   export PORT=3001
   export REACT_APP_PROXY_URL=/api/chat


2. On a separate terminal export the following required variables for NodeJS proxy application (note API_URL will be different if using Github Codespace, e.g. https://awesome-journey-65pj9v9pw52rrrx-5020.app.github.dev/chat):

   export PORT=3001
   export API_URL=http://localhost:5000/chat


   1. From workshop/frontend directory start the NodeJS proxy application using node server.js

3. On a separate terminal start backend API using:

   cd workshop/dotnet/App/backend/
   dotnet run

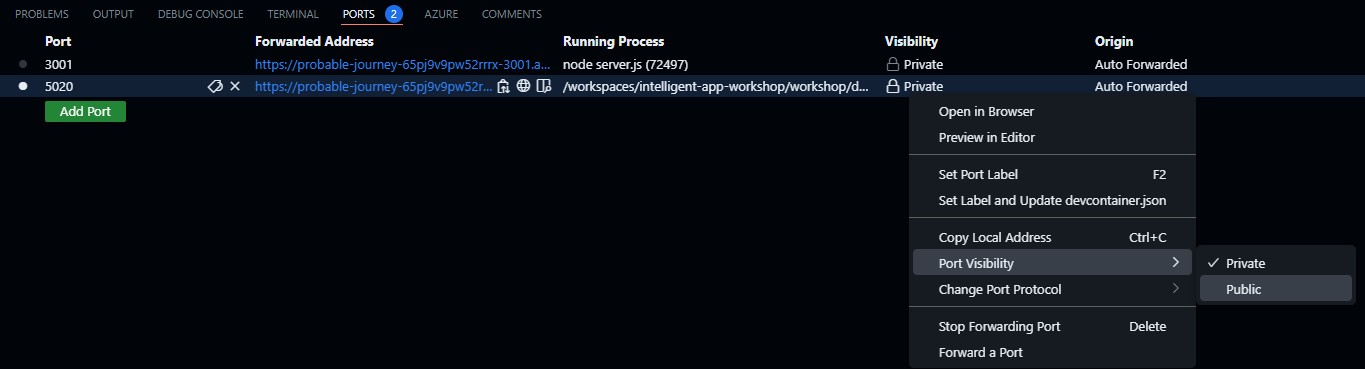

   1. If testing from GitHub Codespace, the port forwarded for .NET application must have a port visibility of Public:
      1. To change this, click on the PORTS tab in Visual Studio Code and then right click running .NET application row and hover over Port Visibility and click Public and click on Public

4. Navigate to browser on http://localhost:3001 or forwarded address (if using Github Codespace) and test the chat application.
